Compact 4 Channel Network Video Recorder with PoE (80Mbps)
Model:NVR4ENT3
Overview

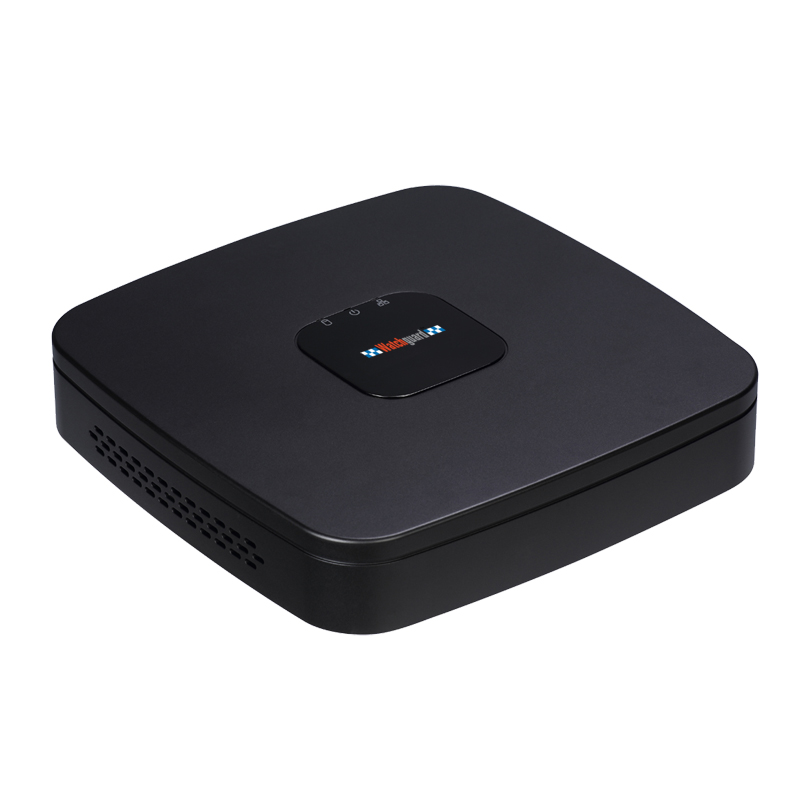

NVR4ENT3 is a compact network video recorder with a built-in 4 port power over Ethernet switch, allowing easy plug and play installation. The NVR features H.264 compression and continuous recording where old footage is overwritten when the hard drive is full.
The NVR also includes motion detection recording, record scheduling and network feed access. This NVR offers a comprehensive range of remote view options so you may monitor your premises on the go. You can connect to your Watchguard™ CCTV system via local and network PC; through applications available for iOS and Android operating devices; and for Windows Phone smartphones.
The NVR also includes motion detection recording, record scheduling and network feed access. This NVR offers a comprehensive range of remote view options so you may monitor your premises on the go. You can connect to your Watchguard™ CCTV system via local and network PC; through applications available for iOS and Android operating devices; and for Windows Phone smartphones.
| Specifications | |
|---|---|
| Alarm Input / Output | N/A |
| Auxiliary Inputs | N/A |
| Backup Modes | USB Device/Network |
| Bit Rate | 48~ 8192kbps |
| Dimensions | Smart 1U, 205mm× 205mm× 45mm |
| Display Resolution | 1920 × 1080, 1280 × 1024, 1280 × 720, 1024 × 768 |
| Display Split | 1/4 |
| Ethernet | 1 RJ-45 port (10/100Mbps) |
| HDD Modes | N/A |
| Incoming Bandwidth | 80Mbps |
| Internal HDD | 1 SATA ports, up to 4TB |
| Main Processor | Dual-core embedded processor |
| Max. User Access | 128 users |
| Maximum Record Resolution | Configurable from 5.0MP(2560 x 1920) to D1 (704 x 480) |
| Network Functions | HTTP, TCP/IP, IPv4/IPv6, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPOE, DDNS, FTP, Alarm Server, IP Search(Support VIP Vision IP camera, DVR, NVS and etc.) |
| ONVIF Conformance | 2.3 Conformance |
| Operating Environment | -10 ~+55°C / 10~90%RH / 86~106kpa |
| Operating System | Embedded Linux |
| Optical Interface | N/A |
| OSD | Camera title, Time, Video loss, Camera lock, Motion detection, Recording |
| Playback Sync | 1/4 |
| Power Consumption | NVR: 10W(without HDD), PoE: Max 25.5W for single port |
| Power over Ethernet | 4 ports (IEEE802.3at) |
| Power Supply | DC48V/1.5A |
| Record Interval | 1~120 min (default: 60 min) / Pre: 1~30s / Post: 10~300s |
| Record Modes | Manual / Schedule (Regular [Continuous], MD, Alarm) / Stop |
| Remote View | iOS (iPhone, iPad); Android devices, Windows Phone |
| Search Modes | Time/Date, Alarm, MD & Exact search (accurate to second), Smart search |
| Trigger Events | Recording, PTZ, Tour, Alarm, Video Push, Email, FTP, Buzzer & Screen tips |
| Two-way Talk | 1 channel input / 1 channel output / RCA |
| USB Interface | 2 ports (2 Rear USB2.0) |
| Video Compression | H.264 / MJPEG |
| Video Detection | Motion Detection, MD Zones: 396(22× 18), Video Loss & Camera Blank |
| Video Input | 4 channel |
| Video Output | 1 HDMI / 1 VGA |
| Weight | 0.5kg (without HDD) |
| Warranty (Years) | 4 |
