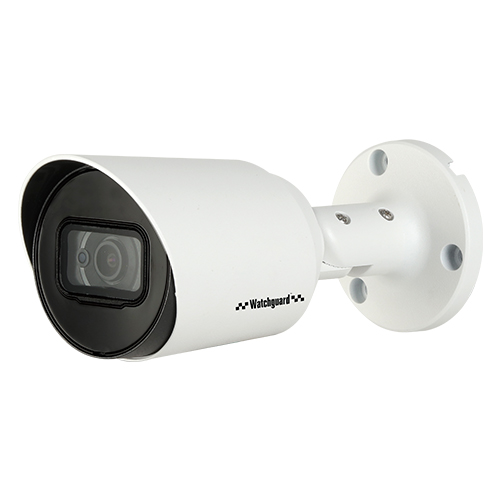

Compact Series 1080p Fixed HDCVI Mini Bullet
Model:VSCVI-2BIRC
Overview
Achieve over double the image resolution of analogue at Full HD with the Compact Series VSCVI-2BIRC HDCVI bullet from Watchguard. Capture clear footage during all hours with superior low light performance, true WDR and weather resistance.
Camera features:
• Streams Full HD 1080p/2.0MP (1920 x 1080)
• Fixed 3.6mm lens; 87° viewing angle
• Up to 800m Full HD video transmission over coax
• Superb low light performance 0.005lx
• Infrared illumination up to 30m
• IP67 rated for weather resistance
• Compact size with adjustable mount
• All metal construction
• Supports HDCVI, AHD, HDTVI & Composite video format modes
• Switch modes via OSD (menu on HDCVI recorder) or with the VSSELECT101 (UTC connector)
Camera features:
• Streams Full HD 1080p/2.0MP (1920 x 1080)
• Fixed 3.6mm lens; 87° viewing angle
• Up to 800m Full HD video transmission over coax
• Superb low light performance 0.005lx
• Infrared illumination up to 30m
• IP67 rated for weather resistance
• Compact size with adjustable mount
• All metal construction
• Supports HDCVI, AHD, HDTVI & Composite video format modes
• Switch modes via OSD (menu on HDCVI recorder) or with the VSSELECT101 (UTC connector)
| Specifications | |
|---|---|
| Alarm Interface | N/A |
| Analogue Support | Yes (Switchable) |
| Angle of View | 87° |
| Audio Input | N/A |
| Camera Type | Bullet |
| Category | HDCVI Surveillance |
| Day/Night | Auto (ICR) / Manual |
| Detect (25px/m) | 55m |
| Dimensions | 165mm x 70mm x 712mm |
| Effective Pixels | 1920 (H) x 1080 (V) |
| Electronic Shutter | 1/3s ~ 1/100,000s |
| Focus | Auto/Manual |
| Frame Rate | 25fps (1080p) / 60fps (720p) |
| Gain Control | Auto |
| Housing | Aluminium |
| Identify (250px/m) | 6m |
| Image Sensor | 1/2.8" 2.0 Megapixel CMOS |
| Infrared Range | 30m |
| Ingress Protection | IP67 |
| Lens | 3.6mm F1.6 Fixed Lens |
| Lens Type | Fixed |
| Lighting Compensation | BLC / HLC / True WDR (120dB) |
| Max. Resolution | 2.0 Megapixel |
| Minimum Illumination | 0.005 Lux at F1.6 (Colour) / 0 Lux IR Active |
| Mode Switching | OSD (via HDCVI recorder) / VSSELECT101 (UTC connector) |
| Modes Supported | HDCVI, AHD, HDTVI & Composite |
| Noise Reduction | 2D |
| Observe (63px/m) | 22m |
| Operating Environment | -40°C ~ +60°C (-40°F ~ +140°F) / Less than 90% RH |
| OSD Menu | Multi language |
| Power Consumption | Max 3.7W (12VDC, IR on) |
| Power Input | 12VDC |
| Recognise (125px/m) | 11m |
| Resolution | 1080p (1920 x 1080) to CIF (352 x 288) |
| Series | Compact Series |
| Signal Noise Ratio | > 65dB |
| Synchronisation | Internal |
| Transmission Distance | Over 800m via 75-3 coaxial cable |
| Tri-Axis Mounting | Yes |
| Vandal Resistant | N/A |
| Video Output | 1 x BNC SD/HD video output (switchable) |
| Weight | 0.36kg |
| White Balance | Auto / Manual |
| Warranty (Years) | 4 |
