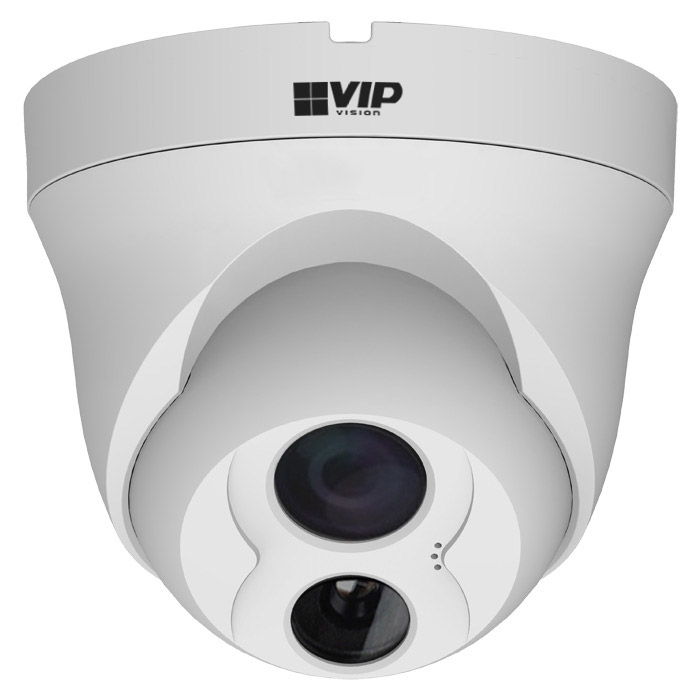

1.3 Megapixel Infrared Fixed Mini Dome (3.6mm)
Model:VSIP1MPVDMINIIRC
Overview
Impressive image quality, innovative infrared and vandal resistance in a compact package, the VIP Vision mini dome is perfect for all residential and small business IP surveillance applications.
Camera Features:
- Stream up to 1.3 megapixel (1280 x 960) at 25fps
- 3.6mm fixed lens with 70° viewing angle
- Day/night (auto ICR) with 30m maximum infrared range
- Backlight/highlight compensation with digital WDR
- 3D digital noise reduction and auto white balance
- Power via 12VDC or Power over Ethernet (802.3af)
- IP66 and IK10 rated housing for external use
- Profile S ONVIF compliance
Camera Features:
- Stream up to 1.3 megapixel (1280 x 960) at 25fps
- 3.6mm fixed lens with 70° viewing angle
- Day/night (auto ICR) with 30m maximum infrared range
- Backlight/highlight compensation with digital WDR
- 3D digital noise reduction and auto white balance
- Power via 12VDC or Power over Ethernet (802.3af)
- IP66 and IK10 rated housing for external use
- Profile S ONVIF compliance
| Specifications | |
|---|---|
| Alarm Interface | N/A |
| Angle of View | Default: 70° / 90° & 44° variants available |
| Audio Compression | G.711a / G.711u / PCM |
| Audio Input | Built-in microphone |
| Backlight Compensation | BLC / HLC / DWDR |
| Bit Rate | H.264: 56K ~ 8192Kbps |
| Camera Style | Weather/Vandal Resistant Mini Dome |
| Camera Type | Dome |
| Day/Night | Auto (ICR) / Colour / B&W |
| Dimensions | Ø108 x 84mm |
| Effective Pixels | 1280 (H) x 960 (V) |
| Electronic Shutter | Auto / Manual (1/3 ~ 1/10000s) |
| Frame Rate - Main | 1.3MP and lower (1 ~ 25fps) |
| Frame Rate - Sub | D1 and lower (1 ~ 25fps) |
| Frame Rate - Third | N/A |
| Gain Control | Auto / Manual |
| Image Sensor | 1/3” 1.3 Megapixel Progressive Scan CMOS |
| Ingress Protection | IP66 |
| Lens | 3.6mm F1.6 Fixed Lens / 2.8mm & 6.0mm variants available |
| Lens Type | Fixed |
| Max. Resolution | 1.3 Megapixel |
| Maximum Infrared Range | 30m |
| Memory Slot | N/A |
| Minimum Illumination | 0.05 Lux at F1.6 (Colour) / 0 Lux at F1.6 |
| Network Interface | RJ45 (10/100 Base-T) |
| Noise Reduction | 3D Digital Noise Reduction |
| ONVIF Conformance | Profile S Compliant |
| Operating Environment | -20° to 60°C / RH95% (max) |
| Power Consumption | < 4.5W |
| Power Input | 12VDC / PoE (802.3af) |
| Signal Noise Ratio | > 50dB |
| Smart Functions | N/A |
| Tri-Axis Mounting | Yes |
| Vandal Resistant | IK10 |
| Video Compression | H.264 / MJPEG |
| Video Output | N/A |
| Video Resolution | Configurable from 1.3MP (1280 x 960) to CIF (352 x 288) |
| Weight | 0.40kg |
| White Balance | Auto |
| Warranty (Years) | 4 |
